Optional 1:1 High Power Sleeve Choke Balun

SE-2MC: 2 Meter Moxon Beam Antenna (Also tunable for use on the MURS Band)

Hours: Monday - Friday

9:00 AM to 5:00 PM (CST)

The SE-2MC, 2-Meter Moxon Beam covers 144 to 148 Mc. at 1.5:1 or less VSWR. The SE-MC oxon can also be used on the CAP frequencies when tuned for the 2 meter Ham Band, and can also be field tuned for the MURS Band. When retuned for the MURS Band the SE-MC Moxon exhibits a VSWR of 1.3:1 or less.

Heavy Duty construction that allows 120 MPH wind survival with 1/2" radial ice. The SE-2 MC features an isolated RF Connector. Constructed of aluminum, fiberglass, UV resistant PVC, and stainless steel components for years of trouble free operation. The SE-2MC can be mounted horizontally for best CW/SSB operation, or it can be mounted vertically for FM operation, STANDARD. Can be used for VHF rover operation, and strong enough to be used for permanent fixed station operation as well. May be stacked with an optional phasing harness for higher gain (+3 dB) fixed station applications. Equipped with a SO-239 (UHF Female), or an optional Type-N connector. An optional high power sleeve bead choke balun is also available

SE-2MC Moxon Horizontally Mounted

SE-2MC Moxon Vertically Mounted

Closeup view of optional 1:1 high power choke balun.

Specifications

Electrical:

Frequency:

Forward Gain:

Front-to-Back:

Maximum VSWR:

Power Limit:

Impedance:

Polarization:

Mechanical:

Boom Length:

Assembled Weight:

Mounting Clamp:

SQ. Surface Area:

Cable Connector:

Wind Survival:

Element Width:

Element Depth:

Turning Radius:

Hardware:

Mounting Clamps:

Screws and nuts:

Boom:

Elements:

Optional Balun:

135 Mc. to 155 Mc. (Specs shown for 144 to 148 Mc.)

5.86dBi (3.7 dBd)

-33 dB (Horizontal)

-22 dB (Vertical)

1.5:1 (144 Mc. to 148 Mc.)

1.5KW PEP

50 ohms

Horizontal or Vertical

18 inches

3.0 lbs

1" to 1.75" capacity

0.3 sq ft Horizontal

0.35 sq ft Vertical

SO-239 (UHF Female), Type-N optional

120 MPH with 1/2" radial ice

27"

12"

22" Horizontal

16.5" Vertical

Zinc Plated

18-8 stainless steel

18" x 1.5", 6061-T6 x 1/8" wall

3/8" & 1/2", 6063-T832 double drawn aluminum

1.6KW 1:1 sleeve bead choke balun

SE-2MC-U, 2-Meter Moxon with UHF connector

plus S&H and any applicable state sales tax

SE-2MC-N, 2-Meter Moxon with Type-N connector

Plus S&H and any applicable state sales tax

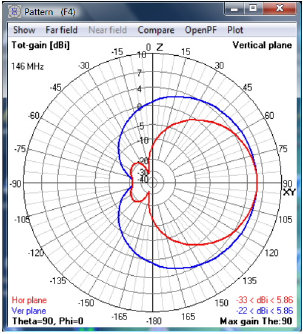

4NEC2 calculated radiation pattern for the SE-2MC

RED = Horizontal Azimuth Pattern

BLUE = Vertical Azimuth Pattern

SE2MC Moxon beam antenna in the horizontal mounted position.

SE2MC Moxon beam antenna shown mounted in vertical position.

Closeup of the SE2MC mount showing the optional 1:1 High Power Choke balun.

SE-2M Moxon beam calculated plot of Horizontal and Vertical Azimuth patterns.

The Antenna Store & More

Typical VSWR curve for SE-2MC antenna. VSWR bandwidth is less than 1.5:1 from 144 to 148 MC.

VSWR (RED Line), Impedance (Green Line) and Return Loss (Blue Line) sweep of the SE-2MC Moxon beam antenna between 143 Mc. and 149 Mc.

NO International orders accepted for this item.

SE-2MC shown vertically polarized with option High Power Choke Balun

Marker Data for the SE-2MC 2 Meter Moxon Antenna between 143.500 Mc. and 148.500 Mc. showing VSWR, Series Resistance, Series Inductance, Impedance, and Phase information per Marker Data Point.

$170.00 SE-2MC-UB, 2 Meter Moxon, UHF Connector with optional High Power Sleeve Choke Balun.

Plus S&H and any applicable state sales tax.

$170.00 SE-2MC-NB, 2 Meter Moxon, Type-N Connector with optional

High Power Sleeve Choke Balun.

Plus S&H and any applicable state sales tax.

The charts below show the SE-2MC antenna characteristics when retuned for the MURS band

VSWR (RED Line), Impedance (Green Line) and Return Loss (Blue Line) sweep of the SE-2MC Moxon beam antenna between 151 Mc. and 155 Mc.

Typical VSWR curve for SE-2MC antenna. VSWR bandwidth is less than 1.3:1 from 151 to 155 MC.

Marker Data for the SE-2MC Moxon Antenna when tuned between 151 Mc. and 155 Mc. showing VSWR, Series Resistance, Series Inductance, Impedance, and Phase information per Marker Data Point.

The SE-MC Moxon can be field tuned to operate in the Multi-Use Radio Service Band from 151.820 Mc. to 154.600 Mc.
