SE-220J, 222 Mc. J-Pole Antenna.
Closeup view of SAL Electronics SE-220J, J Pole antenna 2" mounting clamp.
Typical VSWR curve (RED Line) for the SE-220, 222 Mc. J Pole antenna. (Measured with 10 feet of RG-8X cable)
SE-220J J Pole antenna Marker Data information. (Measured with 10 feet of RG-8X cable)
SE

SAL Electronics, LLC

The Antenna Store & More

1-815-669-6567
Email: sales@sal-electronics.com
Hours: Monday - Friday
9:00 AM to 5:00 PM (CST)
SE-220J:  219 to 225 Mc. J-Pole

Tech Info
sal_electronics033007.gif sal_electronics033006.gif
Articles
Weather
Home
About Us
Contact Us
FAQ's
Policies
Links
Products
The ubiquitous 222 Mc. J-Pole antenna, the SE-220J covers 219 to 225 Mc. at 1.5:1 or less VSWR.  Heavy Duty construction that allows 80 MPH wind survival with 1/2" radial ice.  The SE-220J,J-Pole antenna is provides omni-directional coverage for the entire 222 Mc. band.  This antenna provides a convenent interface with any 222 Mc. transceiver using a single antenna port.  The SE-220J is constructed of 6063-T832 hard drawn aluminum tubing,  and stainless steel components for years of trouble free operation.  The use of aluminum tubing provides for a very light weight (1.0 lbs.) unit.   The SE-220J is designed to be mounted vertically for FM operation.  Built for fixed station and  portable operation.  Mast clamp is designed to accept sizes between 1" to 2" OD.    Equipped with a SO-239 (UHF Female).
SE-220J J-Pole antenna made with aluminum and stainless steel hardware
Closeup showing mast mount and connector interface.
Specifications
Electrical:
Frequency:
Gain:
1.5:1 Bandwidth:
Maximum VSWR:
Power Limit:
Impedance:
Polarization:

Mechanical:
Boom Length:
Assembled Weight:
Mounting Clamp:
SQ. Surface Area:
Cable Connector:
Wind Survival:
Maximum Height:


Hardware:
Mounting Clamps:
Screws and nuts:
Boom:
Elements:
219 Mc. to 225 Mc.
2.15 dBi (0 dBd)
6 Mc.
1.5:1 (219 Mc. to 225 Mc.)
1,000 Watts
50 ohms
Vertical


4.0 inches
1.0 lbs
1" to 2" capacity
0.17 sq ft Horizontal
SO-239 (UHF Female
80 MPH with 1/2" radial ice
39.5"



Zinc Plated
18-8 stainless steel
4.0", 6061-T6 x 1/8" wall
3/8" 6063-T832 double drawn aluminum tubing

$45.00
SE-220J, 222 Mc. J-pole Antenna, UHF Connector

2010 - 2018 - SAL Electronics, LLC, Algonquin, IL 60102

Typical VSWR of SE-220J, J-Pole between 218 Mc. to 230 Mc. (RED Line). (Measured with 10 ft of RG-8X)

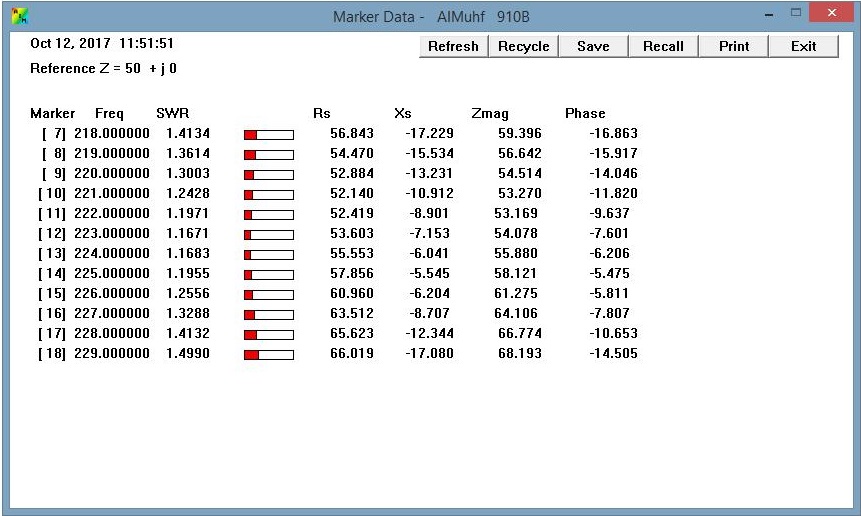

SE-220J J-Pole Marker Data for the above VHF VSWR curve between 218 Mc. to 229 Mc.
